Hydraulic Gear Pump
Featured
$216.00 – $340.00
Model
Choose an option
Add to cart
Product Description

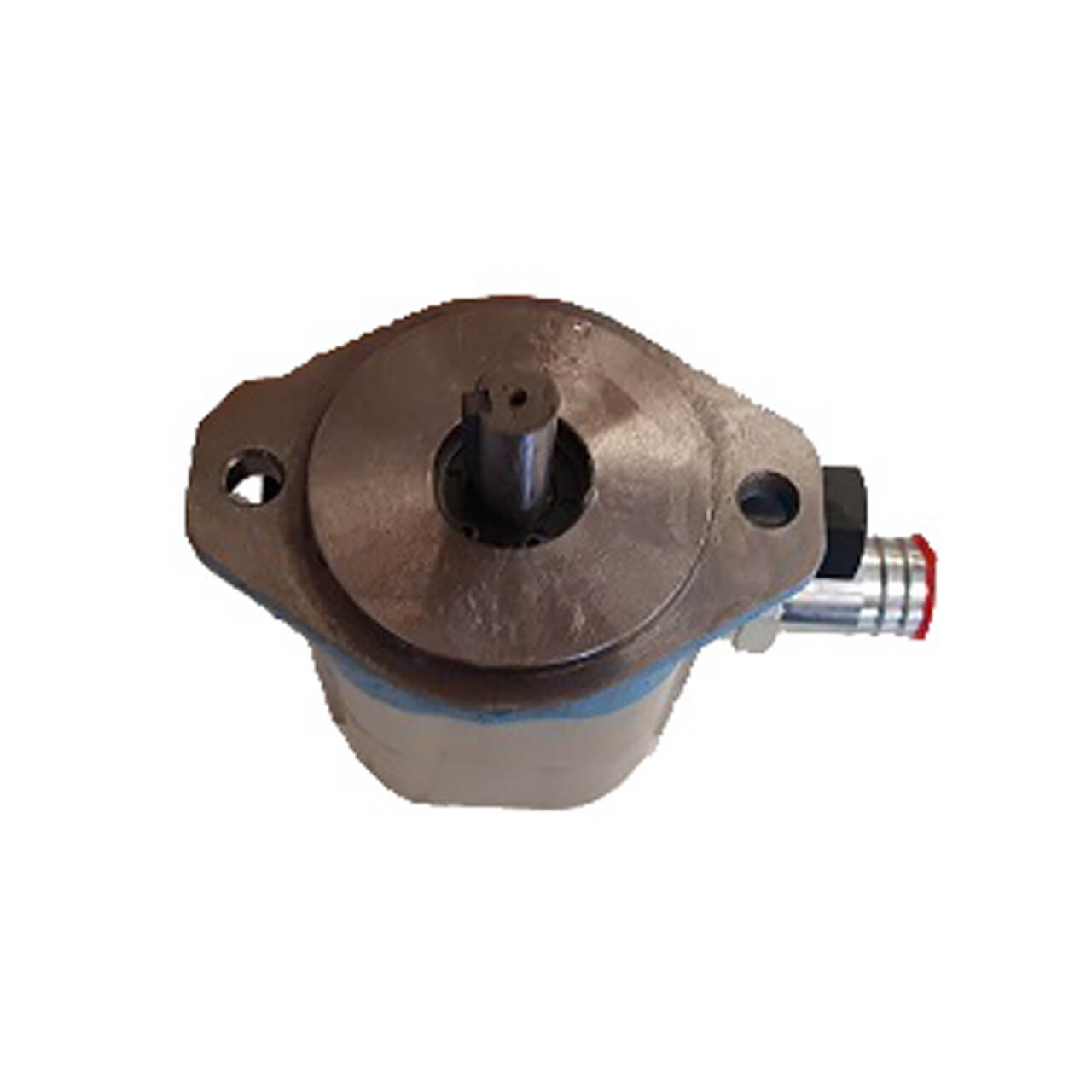

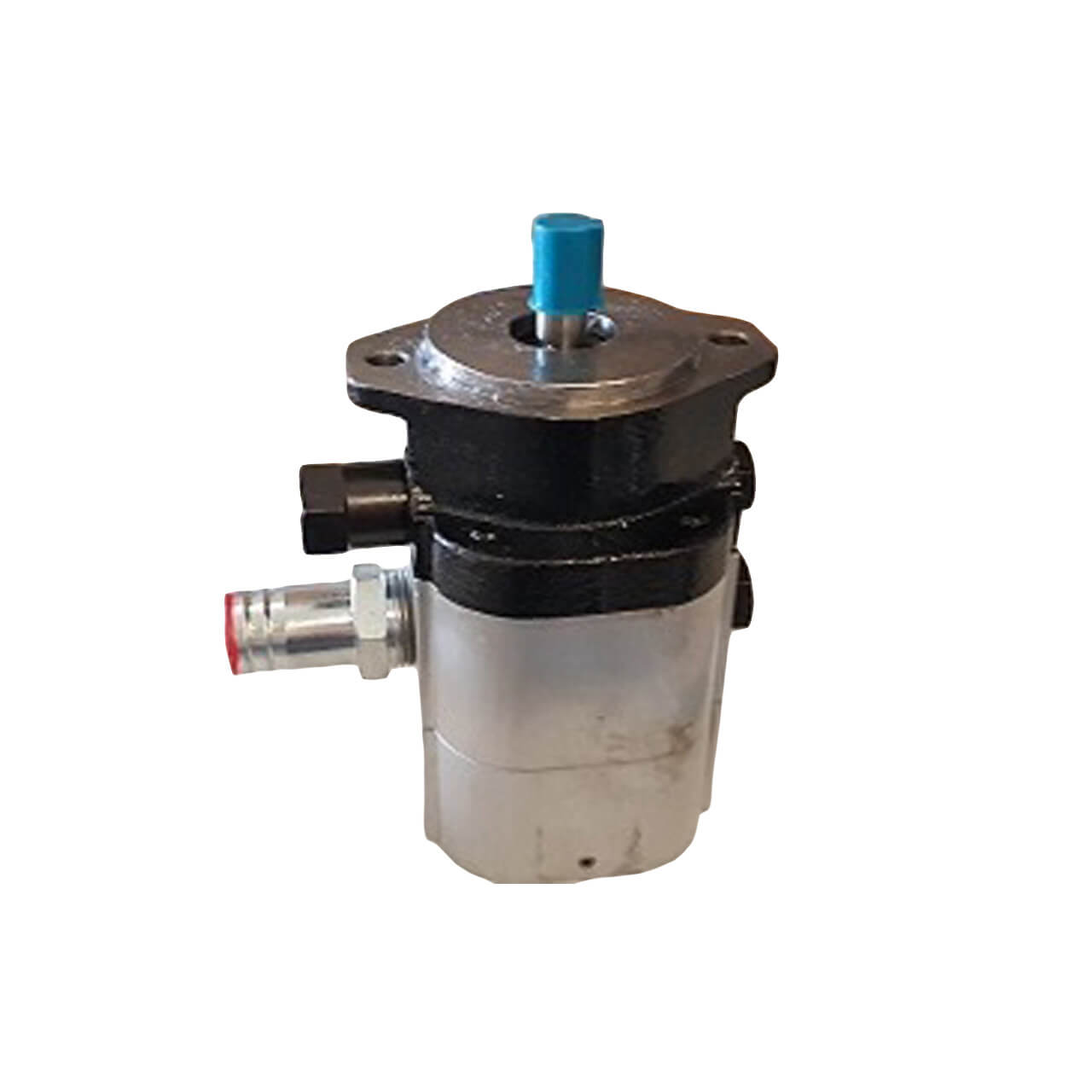

Hydraulic Gear Pump
HI/LOW GEAR PUMP The gear pump consists of a big displacement, low pressure pump and a small displacement, high pressure pump, a check valve as well as an unload valve. When working at the pressure lower than the unloading pressure, both big and small pump output flow. When working at a higher pressure, only small pump outputs flow, which highly reduces the power consumption. The Hydraulic Gear pump is widely used in log splitter, press, machine tools.
INC POSTAGE ANYWHERE IN AUSTRALIA
| Displacement(mL/r) | Displacement(mL/r) | Pressure(MPa) | |||
| Model | Flow L/min(GPM) | Hi Pressure | Low Pressure | Relief valve | speed (RPM |
| CBNA-8.8/2.1 | 39(10) | 2.1 | 8.8 | Preset： 4.5 | 3600 |
| CBNA-13/3.0 | 58(15.4) | 3 | 13 | Preset： 4.5 | 3600 |
| CBNA-15/3.0 | 70(17.4) | 3 | 15 | Preset： 4.5 | 3600 |
| CBDN-16/7 | 83.7(22) | 7.04 | 16.22 | Preset： 4.5 | 3600 |
| CBDN-22/7 | 106.8(28 | 7.04 | 22.65 | Preset： 4.5 | 3600 |
Other Quality Products: Hydraulic Accessories
Additional Information
| Model | 13/3, 15/3, 16/7, 22/7 |
|---|
