Hydraulic Gear Pump
Price range: $250.00 through $350.00
HI/LOW GEAR PUMP The gear pump consists of a big displacement, low pressure pump and a small displacement, high pressure pump, a check valve as well as an unload valve. When working at the pressure lower than the unloading pressure, both big and small pump output flow. When working at a higher pressure, only small pump outputs flow, which highly reduces the power consumption. The pump is widely used in log splitter, press, machine tools.
Guarantee safe & secure checkout
Description
INC POSTAGE ANYWHERE IN AUSTRALIA
HI/LOW GEAR PUMP The gear pump consists of a big displacement, low pressure pump and a small displacement, high pressure pump, a check valve as well as an unload valve. When working at the pressure lower than the unloading pressure, both big and small pump output flow. When working at a higher pressure, only small pump outputs flow, which highly reduces the power consumption. The pump is widely used in log splitter, press, machine tools.
13.3 12mm shaft size 4 bolt adaption
15/3 12mm shaft size 4 bolt adaption

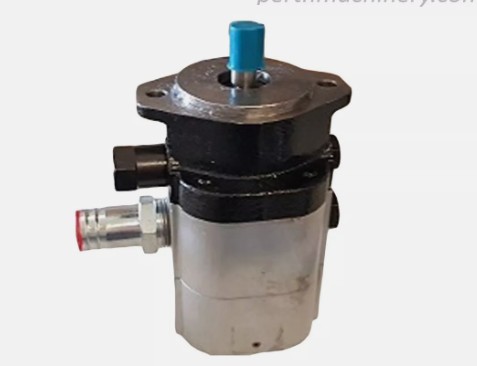

16/7 16mm shaft size 2 bolt adaption
22/7 16mm shaft size 2 bolt adaption out of stock
| Displacement(mL/r) | Displacement(mL/r) | Pressure(MPa) | |||
| Model | Flow L/min(GPM) | Hi Pressure | Low Pressure | Relief valve | speed (RPM |
| CBNA-8.8/2.1 | 39(10) | 2.1 | 8.8 | Preset： 4.5 | 3600 |
| CBNA-13/3.0 | 58(15.4) | 3 | 13 | Preset： 4.5 | 3600 |
| CBNA-15/3.0 | 70(17.4) | 3 | 15 | Preset： 4.5 | 3600 |
| CBDN-16/7 | 83.7(22) | 7.04 | 16.22 | Preset： 4.5 | 3600 |
| CBDN-22/7 | 106.8(28 | 7.04 | 22.65 | Preset： 4.5 | 3600 |
Additional information
| Size | 13/3, 15/3, 16/7 |
|---|
